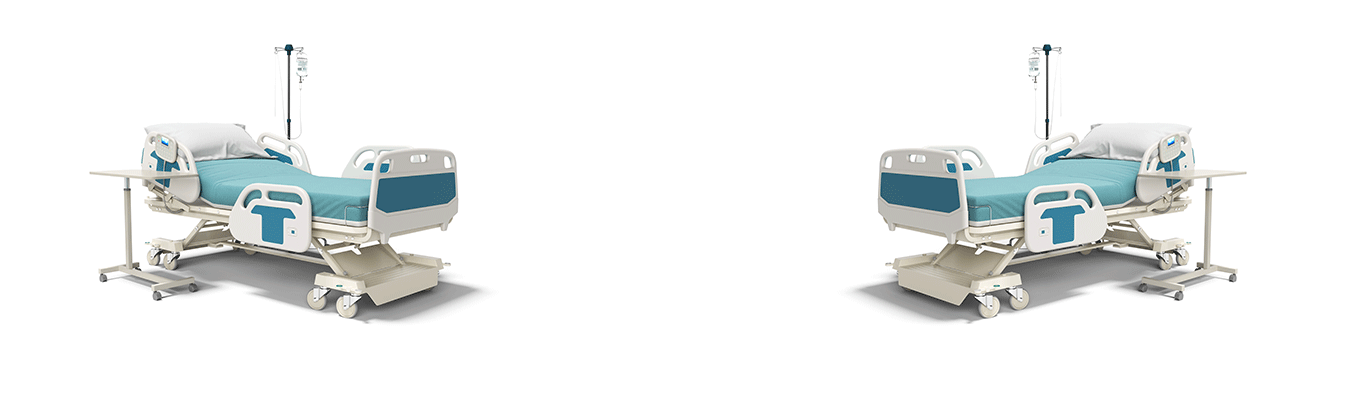

Hospital bed

This is where MISUMI components are used

These components are available from us:

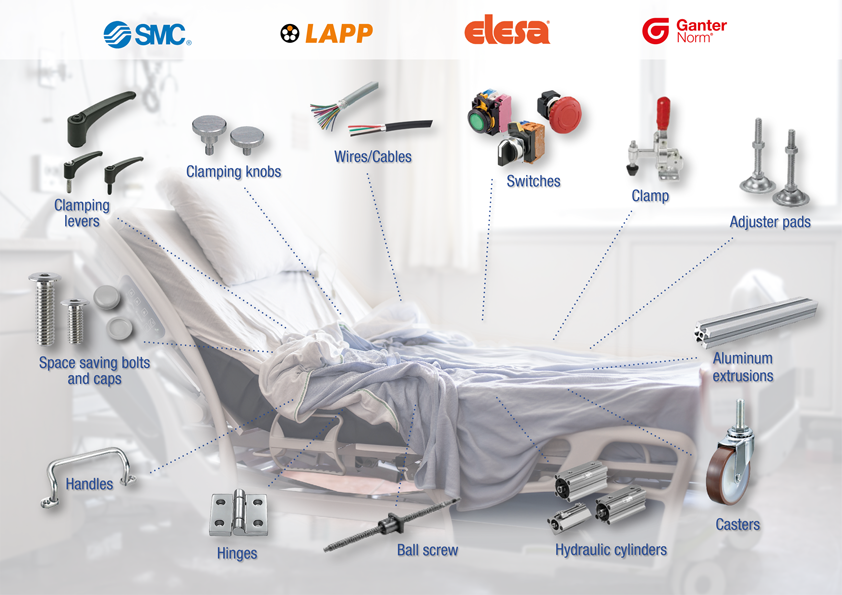

All depicted elements can be found here::

1	Switches	Different product categories available for switches	Configure
2	Clamp	Horizontal and vertical quick-action clampsr Large category selection Quick-action clamp accessories	Configure
3	Adjuster pads	Adjustable feet Anchor feet Different product versions available	Configure
4	Aluminum extrusions	Ten different profile variations Reference frame width to choose from profile size determinable	Configure
5	Casters	Screw-in equipment castors Equipment castors for screw assembly Different manufacturers	Configure
6	Ball screw	Numerous product variations Different variations with a flange Precision category to choose from	Configure
7	Hinges	Various basic body variations (flat, plug-in, concealed, etc.) Operating environment and basic material to choose from Additional functions available	Configure
8	Space saving bolts	Genaue Form wählbar (Senkkopf, Ultraflacher Kopf uvm.) Nenngröße und Länge bestimmbar Auswahl an unterschiedlichen Werkstoffen	Configure
9	Caps	Different categories available	Configure
10	Hydraulic cylinders	Available from our partner brand SMC	Configure
11	Clamping levers	Form to choose from Different applications (clamp, operation, associated components) Selection of different materials	Configure
12	Clamping knobs	Different variations Assembly section (design, nominal diameter, length) to choose from Selection of different materials	Configure
13	Wires/Cables	Different variations for different inserts	Configure
14	Handles	Basic body design to choose from Surface design (U, L, T shape, arch) to choose from Selection of different materials	Configure
